WS Pro Series

Taylorleds is a 80% joint venture of Absen. One of the worlds largest LED companies.

Background Picture: The Strat Theater Las Vegas

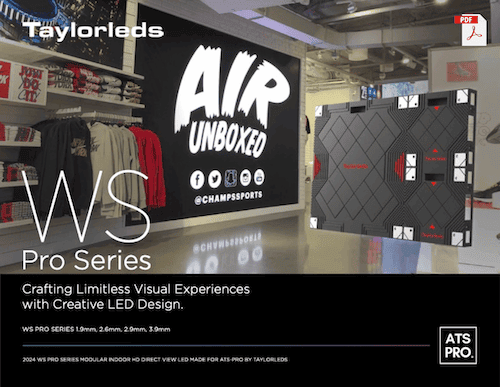

WS PRO SERIES - 1.9mm, 2.6mm, 3.9mm

The Versatile Workhorse of our products with Advanced Features only found in more expensive LED panels and Creative Combinations not found in many...

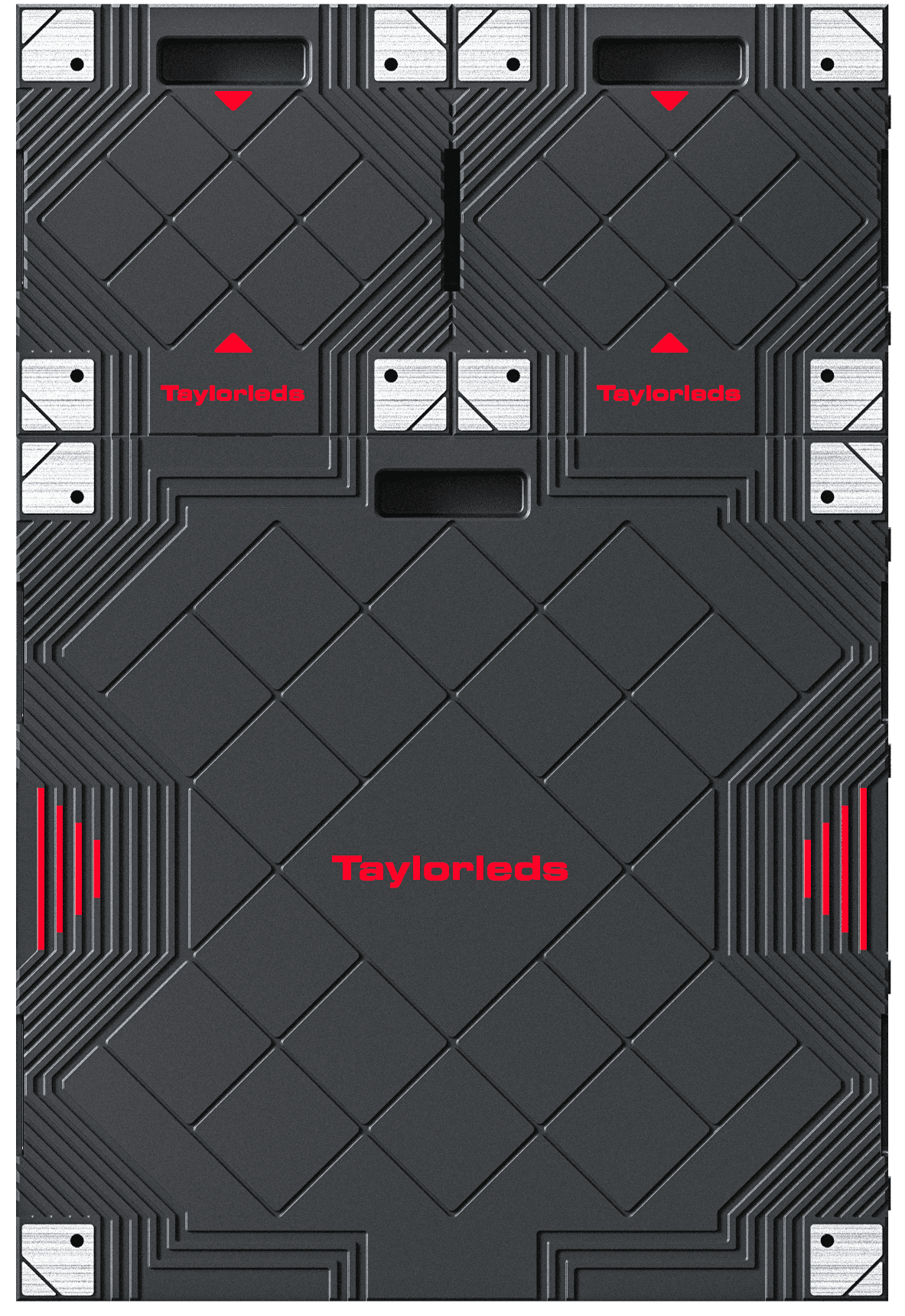

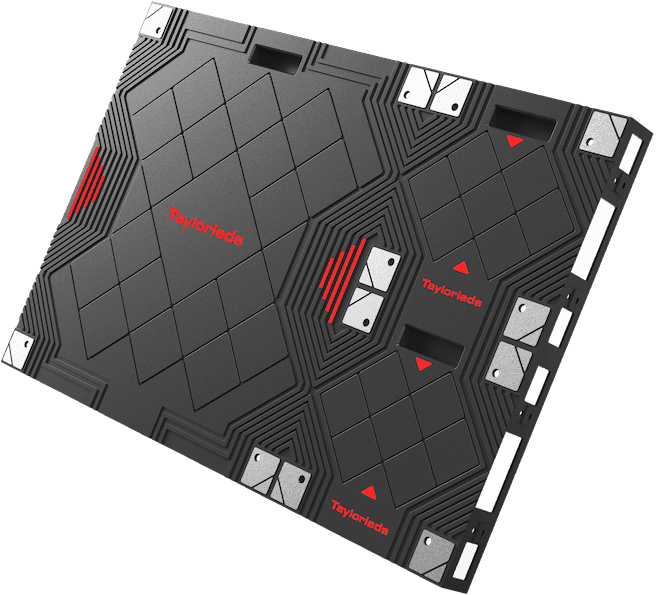

Creative Combination The WS panel consists of 3 pieces; one main panel (master), 500x500mm in size, and two smaller modular (slave) panels, 250x250mm each.

Superlight and Thin 8.2kg | 49mm Easily mounts to wall and flat surfaces with minimal channels and brackets.

Quality Picture Available in 3 different pixel pitches with 3840Hz refresh rate and 14bit grayscale perfect for broadcast and dark content

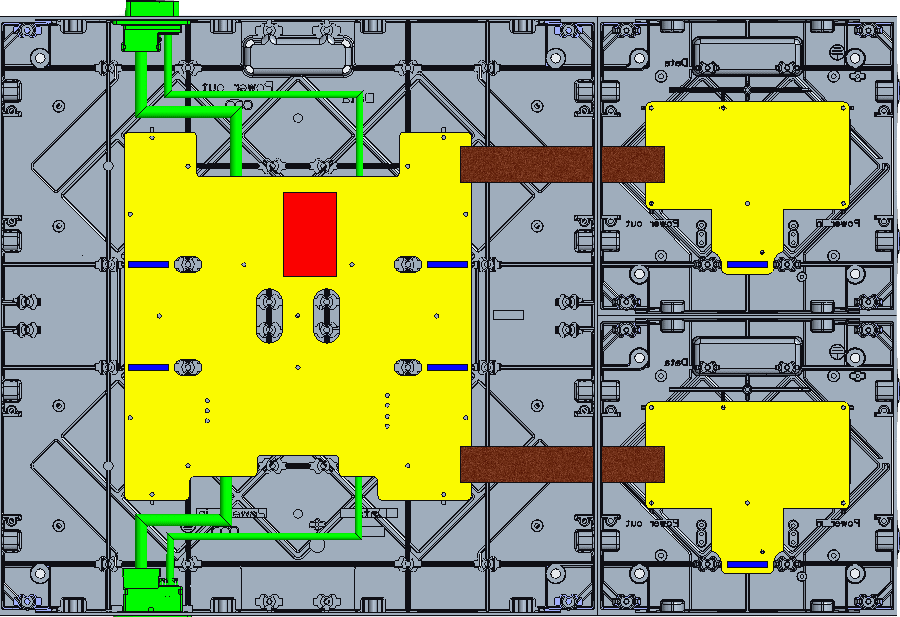

Cable-less Connectors Panels connect with each other through integrated wireless connectors, minimizing cables between panels and reducing cluster inside of panels as well as the mdules to the Hub Card.

Sub Panels Two sub panels includes only hub card and shares power and data with master panel.

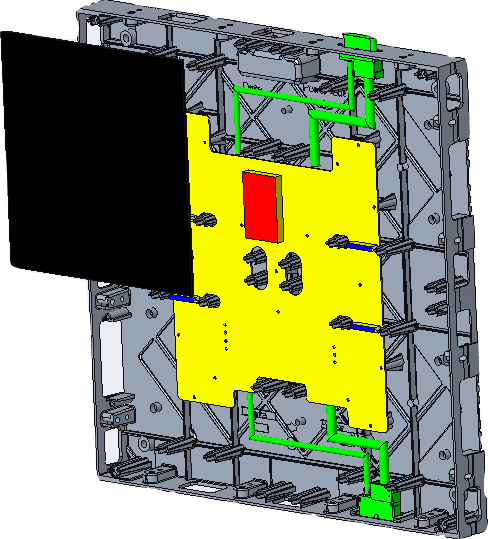

Master Panel Master panel includes power, receiving and hub cards.

Cable-less Cable-less connectors for standard panel to panel connections.

Additional Expansion Additional/back-up slots for wired connection for creative screen creations.

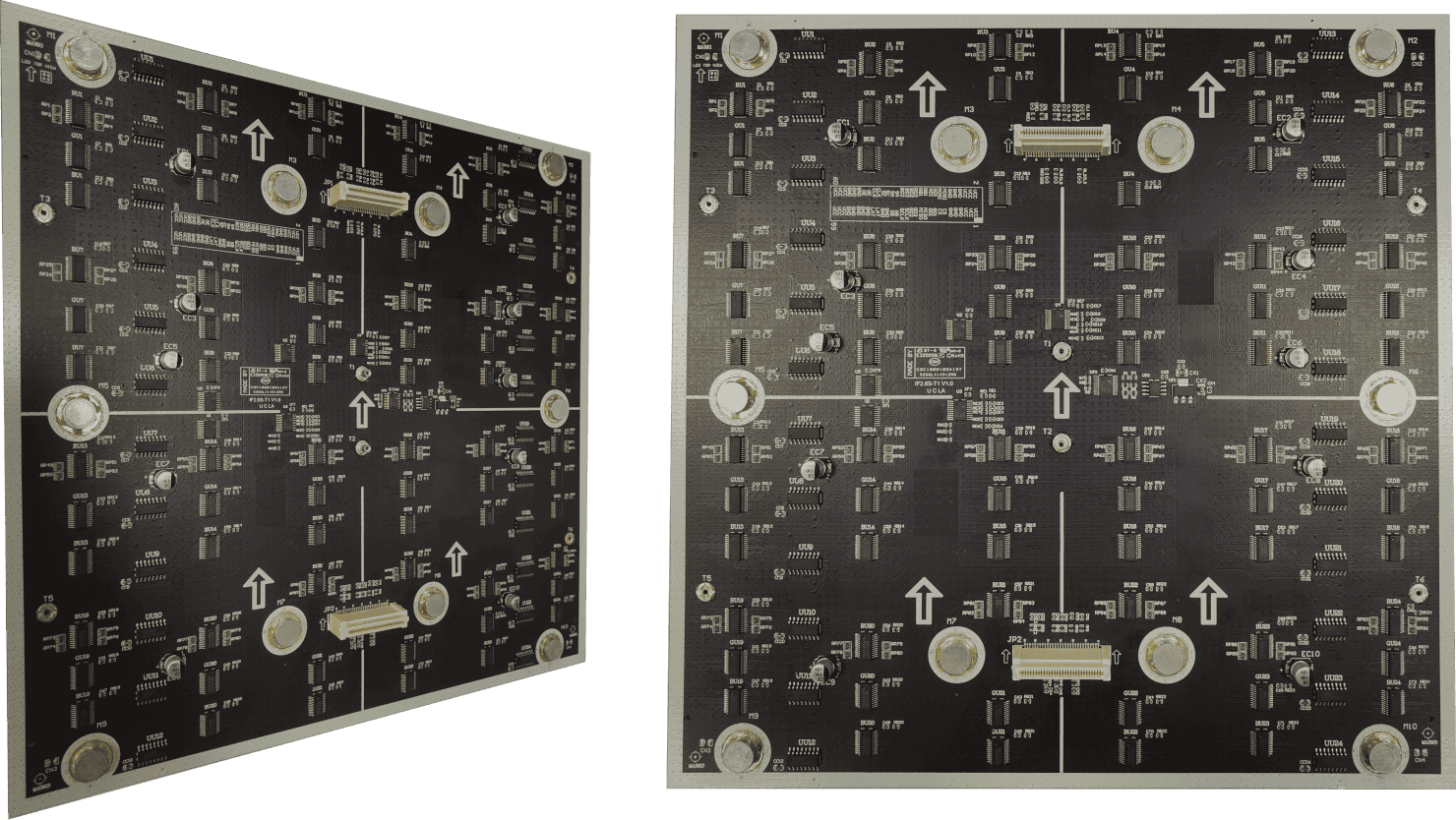

Modules Slim modules without housing for uniformity & flatness

Panels have Captive screws Throughout allow for faster installation with no lost screws to worry about.

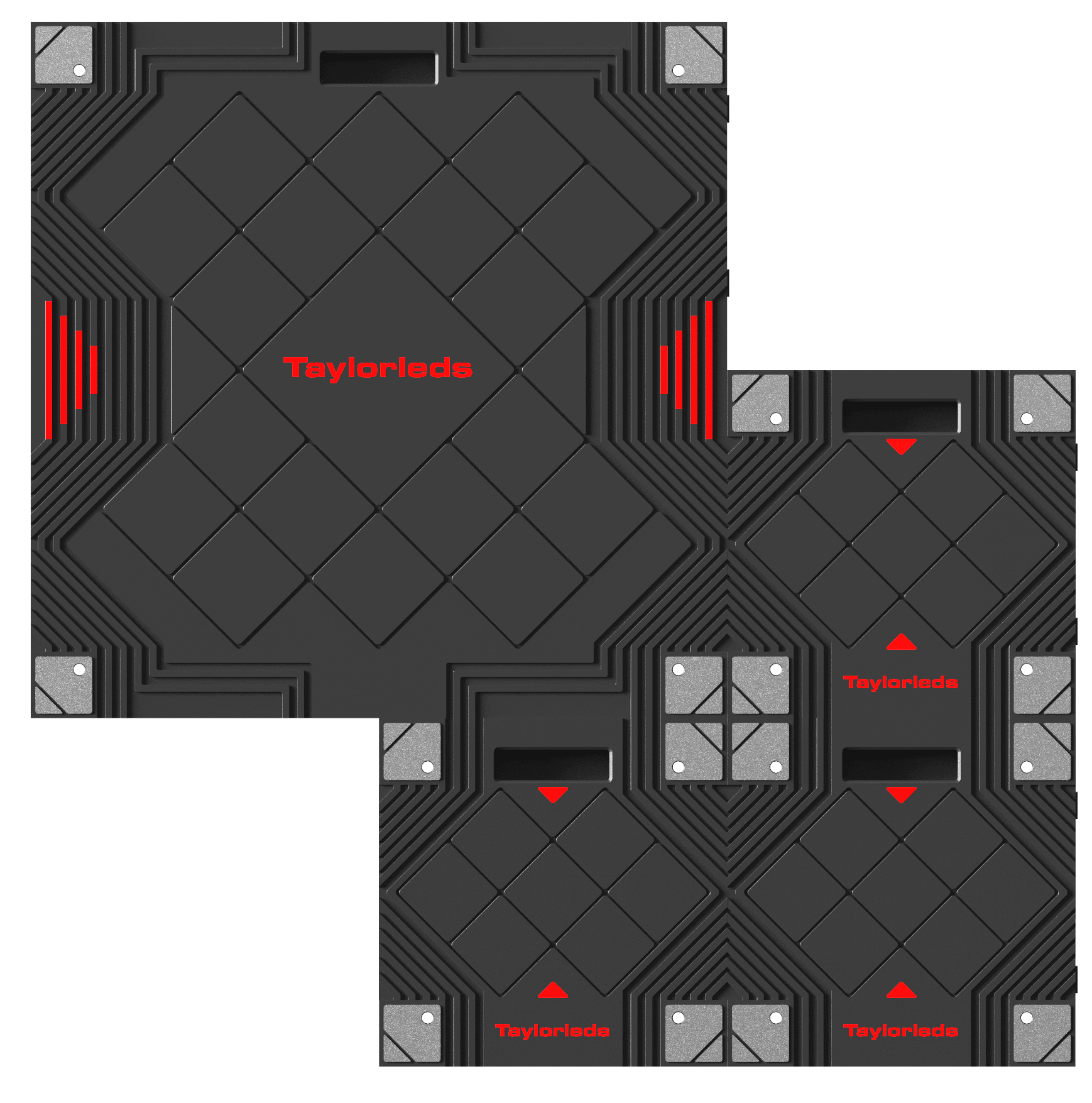

Modular Combinations The WS panel consists of 3 pieces; one main panel (master), 500x500mm in size, and two smaller modular (slave) panels, 250x250mm each.

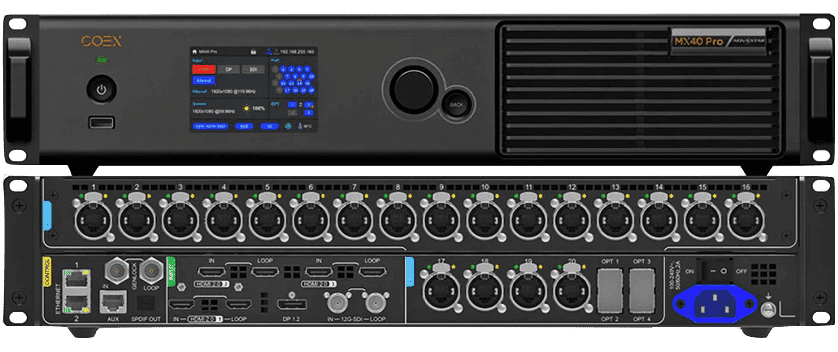

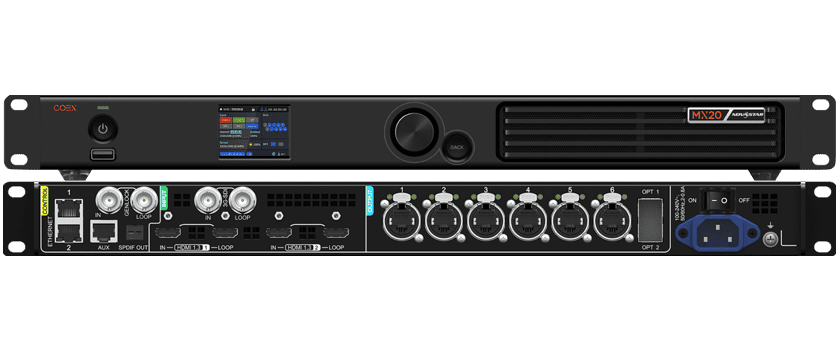

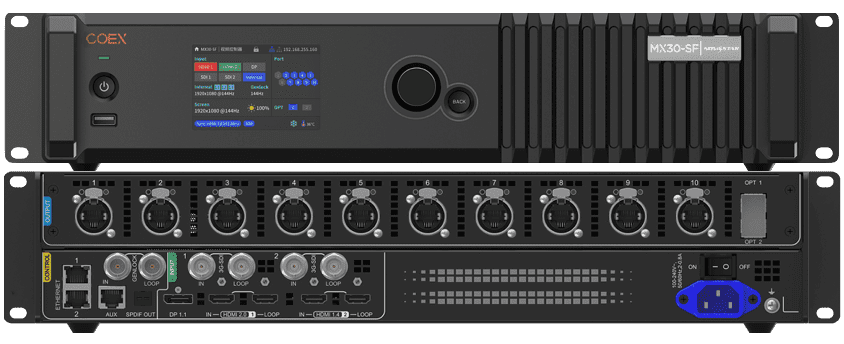

By making the the WS Pro come standard with the Novastar A10s Pro Receiving Card, we upgraded the IC’s to take full advantage of the most powerful Graphics Engine and Processing available on the market today. With the exceptional, verastile design of the WS Pro Series and the Powerful new COEX MX Series Processors , the WS Pro Elevates the LED Experience by providing - State of the Art - color, operational control and advanced Camera Correction features.

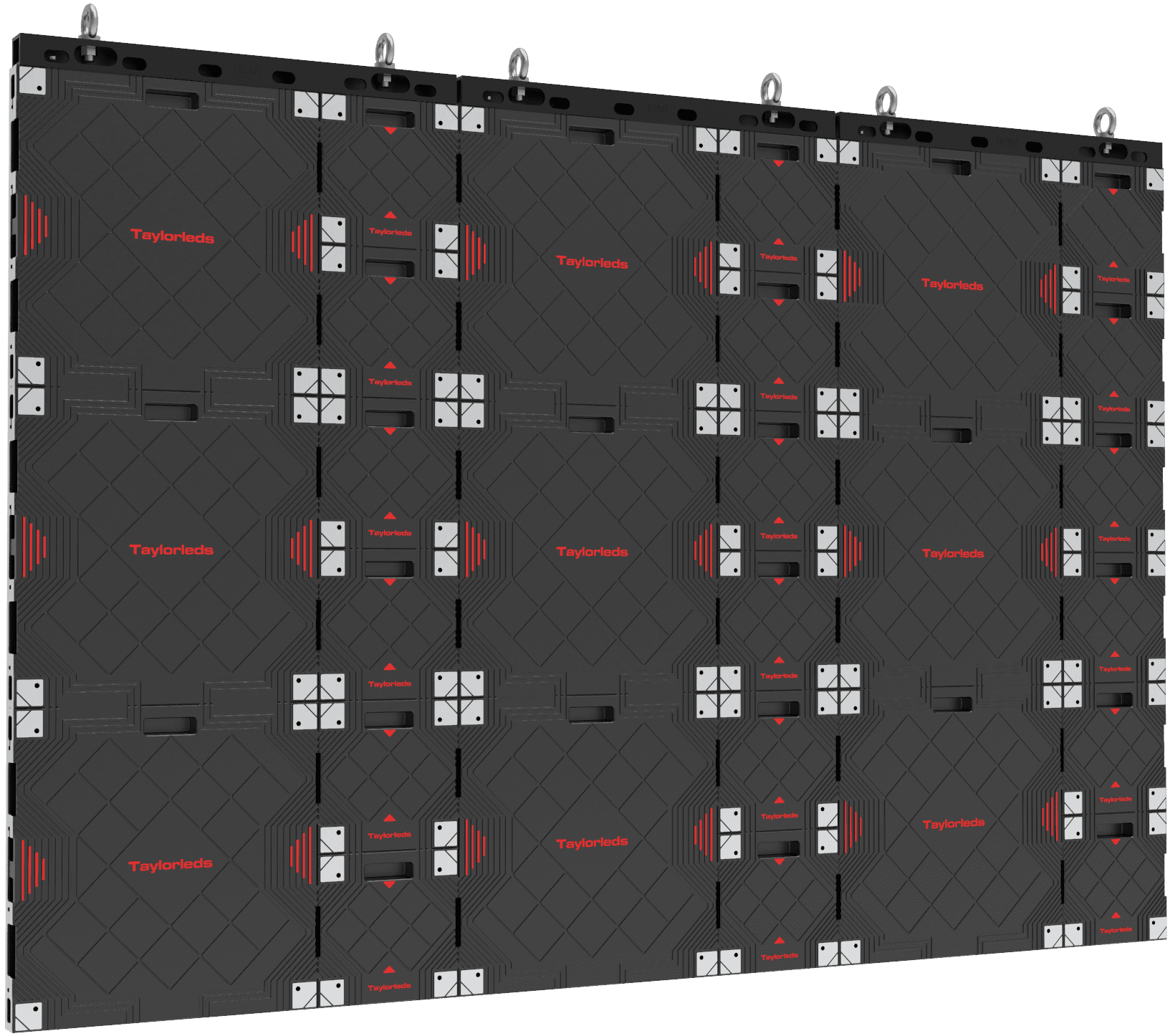

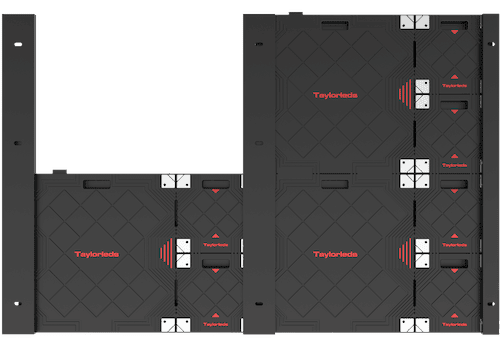

Multiple Mounting Methods

Floor Stack

Wall Mount

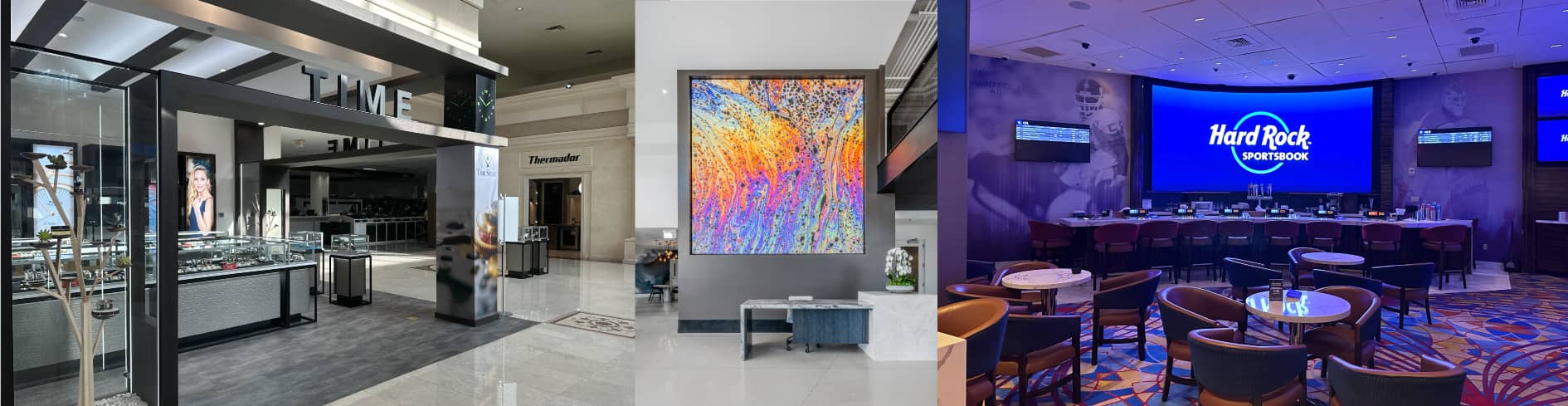

WS Series Project Highlight

(1) 31.2 ft x 13.1 ft WS Series Stage LED Wall. (2) Side Stage IMAG Sceens. (8) Theater Video Columns

The Strat Theater

Las Vegas, NV

Elevate The LED Experience
