Panel Configurations utilizing 2, 3, 4 or 5 modules

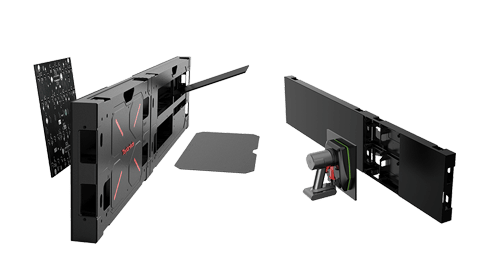

Front and Rear Service

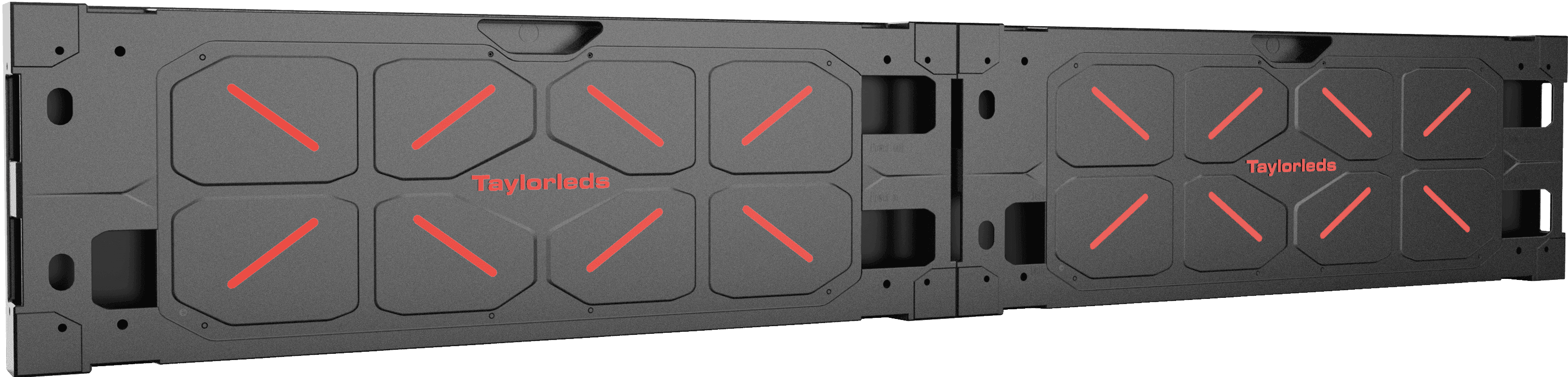

The WB (Wafer Breeze) is a Lightweight die-cast aluminum panel with CNC precision and featuring Taylorleds’ unique “housing-free" module design. Using the highest quality LED diodes and masks for super-high contrast and vivid colors. Front and rear serviceable.

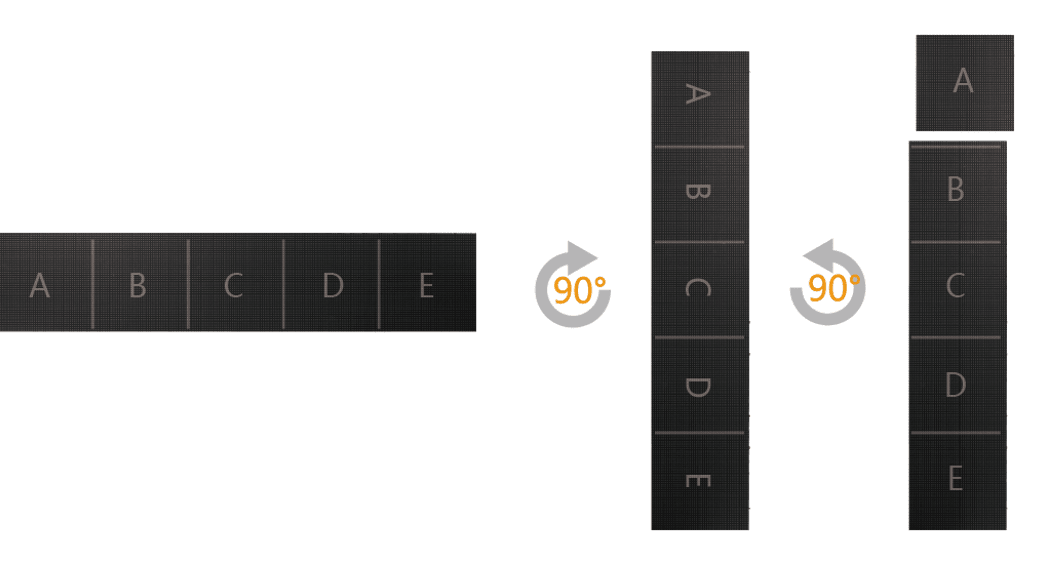

When we rotate the cabinet at 90°, we can rotate the module at 90° in the opposite direction to avoid color cast and get better display performance

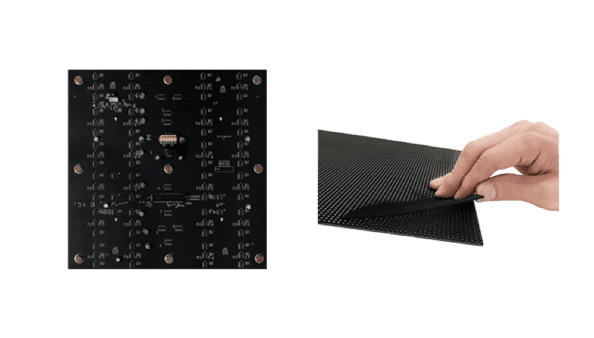

Slim modules without housing for uniformity & flatness. Diagnostics, Traceability, Color Settings, Production Date, Model & Version Data, Calibration Data, Module Current & Voltage, Module Temperature, Operating Hours Optical design can maximize the viewing angle. Top printing ink spraying craft improves the contrast ratio and color conformity. Easy maintenance and non-cohesive.

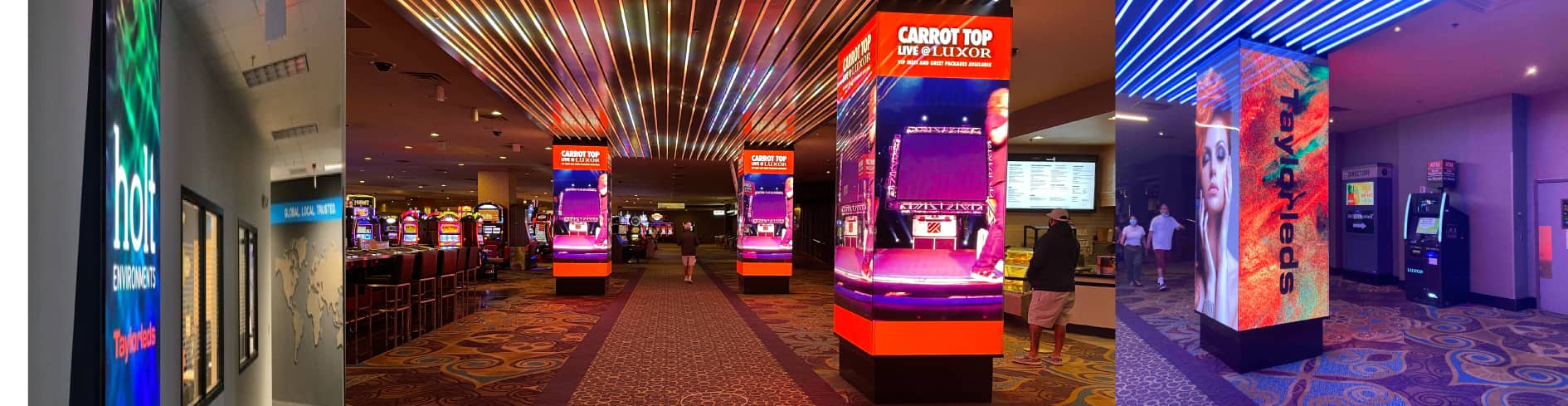

Cabinet can be cut to achieve 90° corner splicing. We will also cut modules on the edge to minimize the seam.

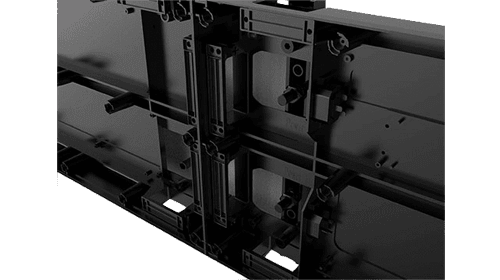

Wall Mount

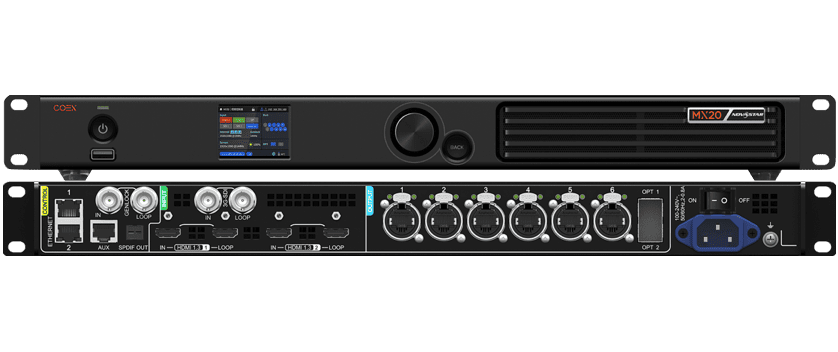

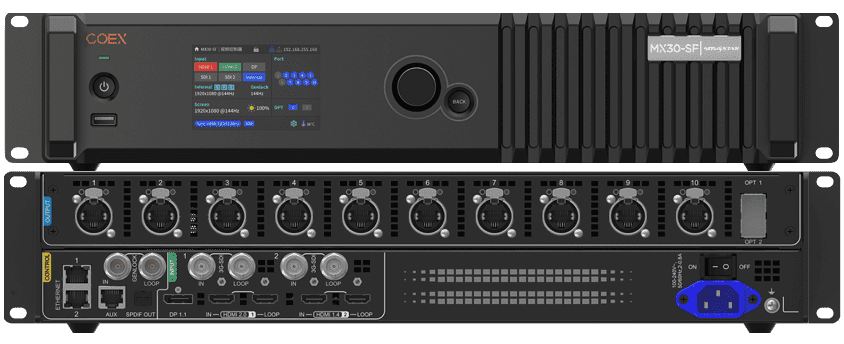

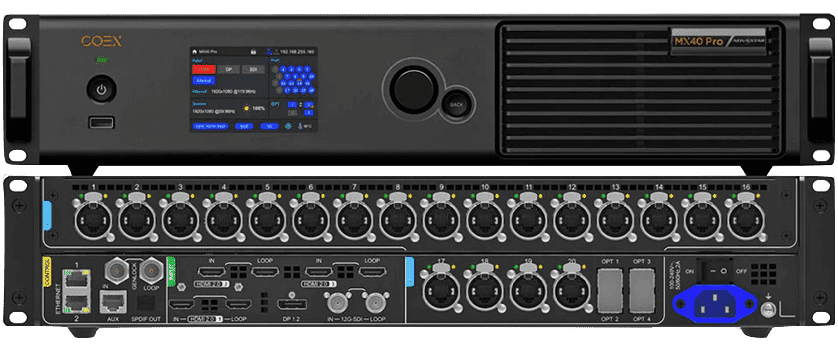

The WB Series comes with the Novastar A5s Pro Card. With the exceptional, versatile design of the WB Series and the Powerful new COEX MX Series Processors , the WB Series Elevates the LED Experience by providing State of the Art Color and Operational Control.
