NovaStar, a global leading LED display solution provider, designs and develops LED display control solutions for a variety of market applications including entertainment, digital signage, and rental.

NovaStar commits to pioneer innovative technology in LED display control and has been offering products with exclusive proprietary intellectual property rights identified as the industry standards. Our goal is to continue to create value for our clients with pioneer technology, tailored solutions, user-friendly products, and professional support.

ATS-Pro is the leader with Elevated Graphics and Control for LED Systems

ATS-Pro's Taylorleds WX, WN Pro, WU Pro, WS Pro, VX Pro and VE Pro Series all have options to incorporate the Novastar A10sPro receiving card and upgraded Module IC's for 100% Compatibility with the new COEX/MX Series of Graphic Processors and VMP Software. The VMP is an all-new display control software that integrates design, management, and monitoring into one single platform.

When paired with the flagship MX Series controller and A10s Pro receiving card, an incredibly professional LED solution is realized, providing stunning image quality, precise color adjustment, and an intuitive software experience. This represents a totally new solution for managing high-end applications such as fine-pitch LED installations.

VX Pro Series



VX Pro Specifications

Device Model Loading Capacity Max Width (pixels) Max Height (pixels) Layers Input Connectors Output Connectors Presets Control Connectors

VX400 Pro 2.6 million pixels 10240 8192 6 *2K×1K 1× HDMI 2.0（IN&LOOP） 2× HDMI 1.3 1× 3G-SDI（IN&LOOP） 1× 10G OPT Port（OPT1） 1× USB3.0                 4× Ethernet Ports 1× HDMI1.3 1× HDMI 2.0 LOOP 1× 3G-SDI LOOP 2× OPT                 256 2× Ethernet Port 1× USB

VX600 Pro 3.9 million pixels 10240 8192 6 *2K×1K 1× HDMI 2.0（IN&LOOP） 2× HDMI 1.3 1× 3G-SDI（IN&LOOP） 1× 10G OPT Port（OPT1） 1× USB3.0                 6× Ethernet Ports 1× HDMI1.3 1× HDMI 2.0 LOOP 1× 3G-SDI LOOP 2× OPT                 256 2× Ethernet Port 1× USB

VX1000 Pro 6.5 million pixels 10240 8192 6 *2K×1K 1× HDMI 2.0（IN&LOOP） 2× HDMI 1.3 1× 3G-SDI（IN&LOOP） 1× 10G OPT Port（OPT1） 1× USB3.0                 10× Ethernet Ports 1× HDMI1.3 1× HDMI 2.0 LOOP 1× 3G-SDI LOOP 2× OPT                 256 2× Ethernet Port 1× USB

VX2000 Pro 13 million pixels 16384 8192 12 *2K×1K 1× 12G-SDI(IN&LOOP) 1× DP 1.2 2× HDM 2.0 4× HDMI 1.3 2× OPT 1× USB3.0                 20× Ethernet Ports 1× HDMI1.3 4× OPT 1× 2G-SDI LOOP 4× OPT                 256 2× Ethernet Port 1× USB

VX400 Pro

VX600 Pro

VX1000 Pro

VX2000 Pro

COEX Series



COEX Series Specifications

Model Loading Capacity Modular Design Input Card Qty Output Card Qty Chassis Height INPUTS Input Interface Input Bit Depth Max. Input Width Max. Input Height OUTPUTS Output Interface Layers Note: 4×4K layers per output card Max. Output Width Max. Output Height GENLOCK Genlock Type . . Lock to Reference Source Lock to Internal Timing

MX6000 Pro 141 Million (Max) ✓ 8 8 6U Input Card Options Video-over-IP MX_ 1×ST 2110 (25G) Input Card MX_ 2×ST 2110 (25G) Input Card MX_1×ST 2110 (100G) (8K@60Hz) Input Card 8K Level MX_ 2×HDMI 2.1 Input Card MX_2×DP 1.4 Input Card MX_ 1×DP 1.4 + 1×HDMI 2.1 Input Card MX_1×DP 1.4(8K@60Hz) Input Card 4K Level MX_4×HDMI 2.0 Input Card MX_4×DP1.2 Input Card MX_4×12G-SDI Input Card 8bit 10bit 12bit 16384 16384 Output Card Options MX_4×10G Fiber Output Card (Work with Amor series) Up to 32×4K layers 16384 16384 Bi-level Tri-level Blackburst ✓ ✓

MX2000 Pro 35.38 Million (Max) ✓ 2 2 2U 3×HDMI 2.0 (IN+LOOP) 1×DP 1.2 1×12G-SDI (IN+LOOP) 8bit 10bit 12bit 16384 16384 20×1G Neutrik 4×10G OPT Up to 8×4K layers 16384 16384 Bi-level Tri-level Blackburst ✓ ✓

MX40 Pro 9 Million × N/A N/A 2U 1×HDMI 2.0 (IN+LOOP) 1×HDMI 1.4 (IN+LOOP) 1×DP 1.1 2×3G-SDI (IN+LOOP) 8bit 10bit 12bit 8192 8192 10×1G Neutrik 2×10G OPT 4 16384 16384 Bi-level Tri-level Blackburst ✓ ✓

MX30 6.5 Million × N/A N/A 2U 2×HDMI 1.3 (IN+LOOP) 1×3G-SDI (IN+LOOP) 8bit 10bit 8192 7680 6×1G Neutrik 2×10G OPT 3 16384 16384 Bi-level Tri-level Blackburst ✓ ✓

MX20 3.9 Million × N/A N/A 1U 1×HDMI 1.3 (IN+LOOP) 8bit 10bit 3840 2560 6×RJ45 1×10G OPT 3 4096 4096 Bi-level Tri-level Blackburst ✓ ✓

KU20 3.9 Million × N/A N/A 1U 8bit 10bit (Custom) 3840 2560 1 4096 4096 x ✓ ✓

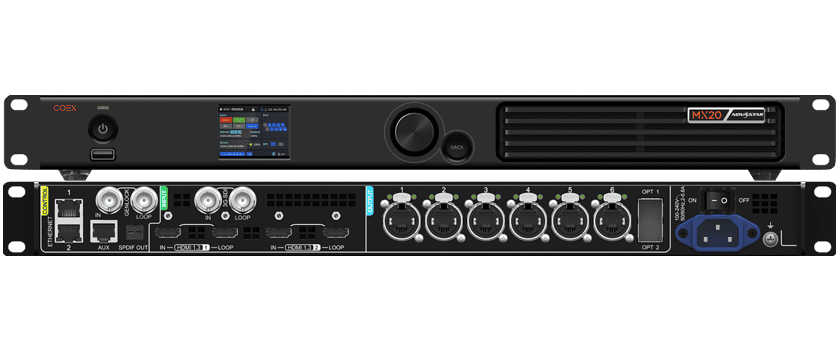

MX20

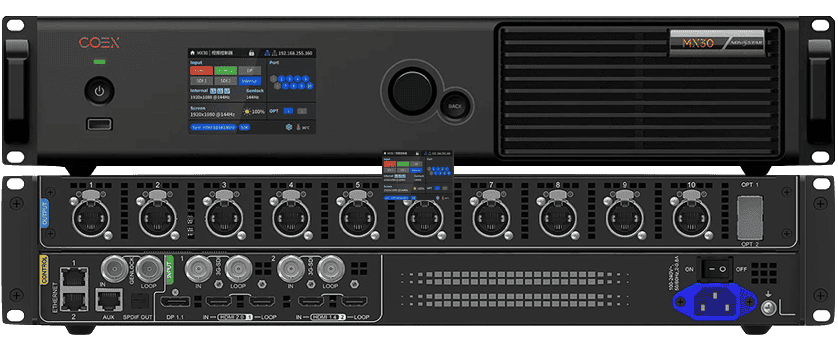

MX30

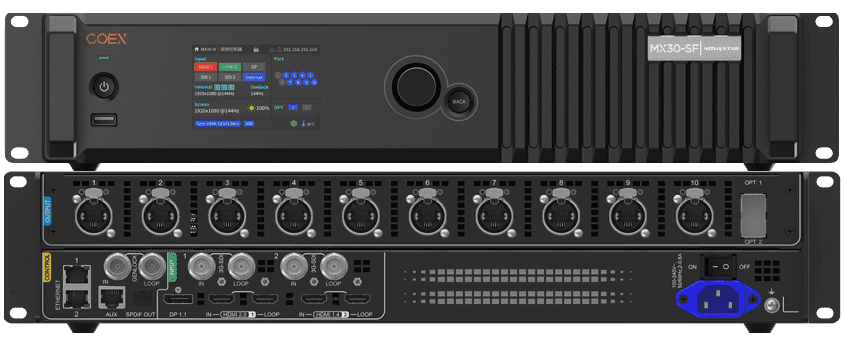

MX30- SF

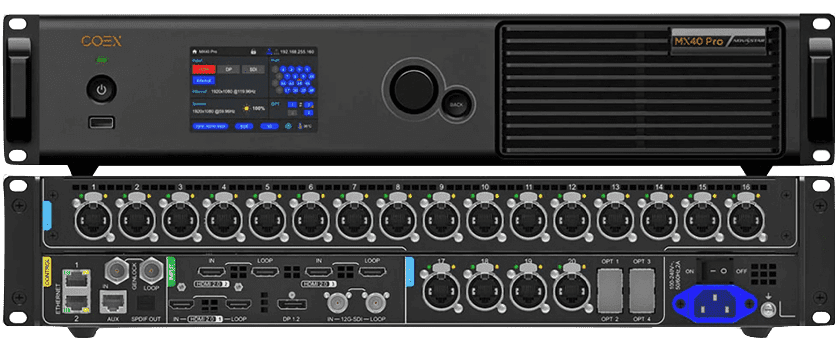

MX40 Pro

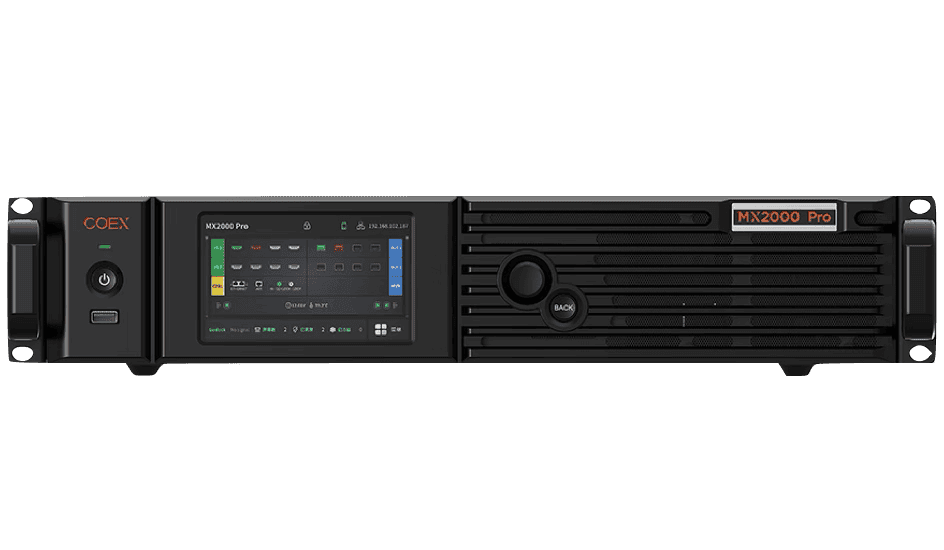

MX2000

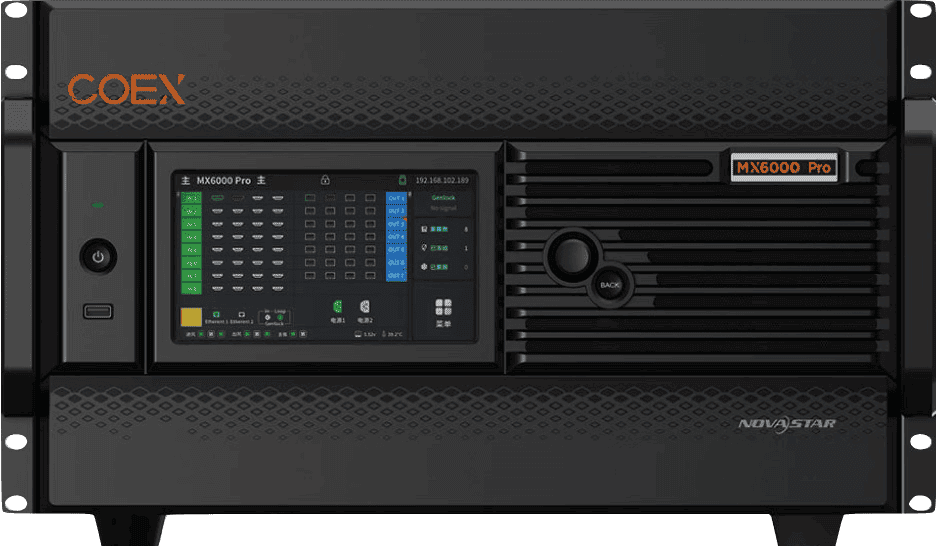

MX6000
